DMT2004UFV-7

In Stock: 6,510

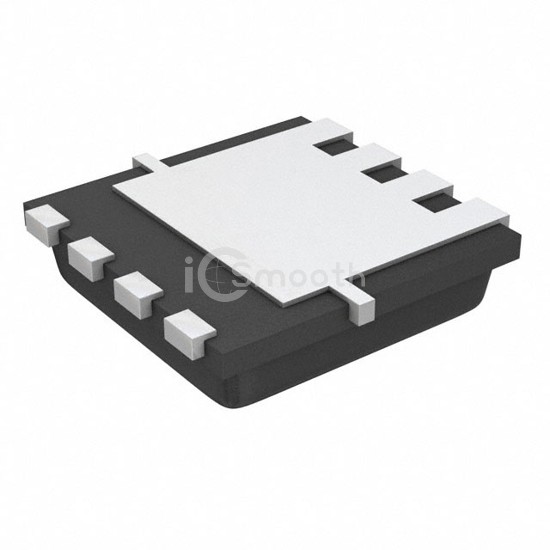

DMT2004UFV-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMT2004UFV-7 Diodes Incorporated
DMT2004UFV-7

Diodes Incorporated

MOSFET N-CH 24V 70A POWERDI3333

DMT2004UFV-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 24V 70A POWERDI3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 6,510

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)24 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id1.45V @ 250µA
Gate Charge (Qg) (Max) @ Vgs53.7 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1683 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8 (Type UX)
Package / Case8-PowerVDFN
