Name: DMT12H065LFDF-7
Brand: Diodes Incorporated
SKU: DMT12H065LFDF-7
Price: 0.40 USD
Availability: InStock

REF: DMT12H065LFDF-7 Diodes Incorporated

DMT12H065LFDF-7

Diodes Incorporated

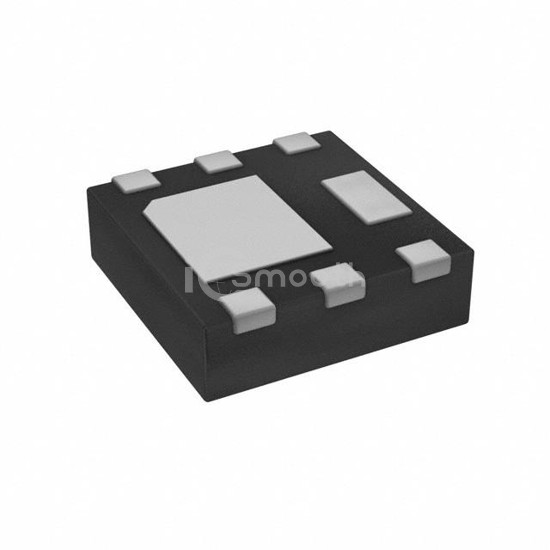

MOSFET N-CH 115V 4.3A 6UDFN

DMT12H065LFDF-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 115V 4.3A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,239

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	115 V
Current - Continuous Drain (Id) @ 25°C	4.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	3V, 10V
Rds On (Max) @ Id, Vgs	65mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.5 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	252 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type F)
Package / Case	6-UDFN Exposed Pad
