DMPH4025SFVWQ-13

In Stock: 9,585

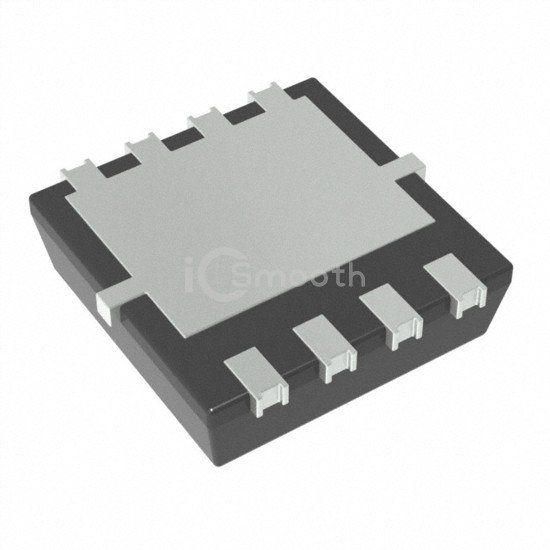

DMPH4025SFVWQ-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMPH4025SFVWQ-13 Diodes Incorporated
DMPH4025SFVWQ-13

Diodes Incorporated

MOSFET P-CH 40V PWRDI3333

DMPH4025SFVWQ-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 40V PWRDI3333. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN.

Request a Quote

In Stock: 9,585

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C8.7A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs25mOhm @ 30A, 10V
Vgs(th) (Max) @ Id1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs38.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1918 pF @ 20 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 60W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Supplier Device PackagePowerDI3333-8 (SWP) Type UX
Package / Case8-PowerVDFN
