DMP4006SPSWQ-13

In Stock: 9,737

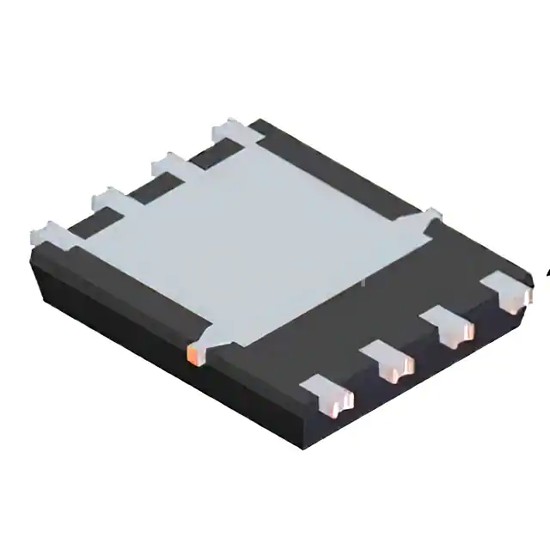

DMP4006SPSWQ-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMP4006SPSWQ-13 Diodes Incorporated
DMP4006SPSWQ-13

Diodes Incorporated

MOSFET BVDSS: 41V~60V POWERDI506

DMP4006SPSWQ-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET BVDSS: 41V~60V POWERDI506. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 9,737

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C115A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs5.2mOhm @ 9.8A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs162 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6855 pF @ 20 V
FET Feature-
Power Dissipation (Max)3.4W (Ta), 104W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Supplier Device PackagePowerDI5060-8 (Type UX)
Package / Case8-PowerTDFN
