DMP32D9UFO-7B

In Stock: 1,911

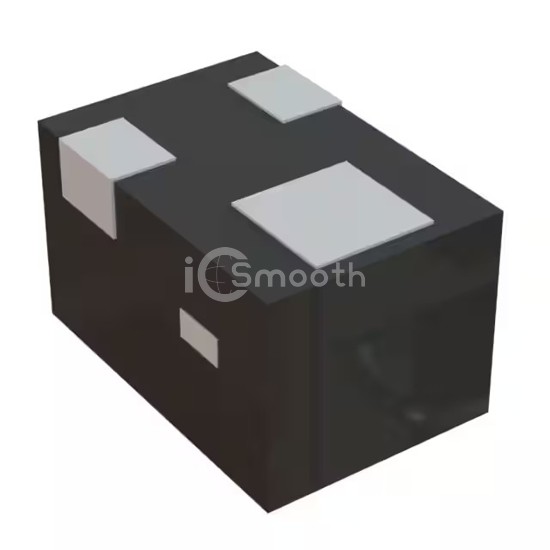

DMP32D9UFO-7B - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMP32D9UFO-7B Diodes Incorporated
DMP32D9UFO-7B

Diodes Incorporated

MOSFET BVDSS: 25V~30V X2-DFN0604

DMP32D9UFO-7B is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET BVDSS: 25V~30V X2-DFN0604. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 1,911

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.35 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds21.8 pF @ 15 V
FET Feature-
Power Dissipation (Max)320mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageX2-DFN0604-3
Package / Case3-XFDFN
