Name: DMP3028LFDE-7
Brand: Diodes Incorporated
SKU: DMP3028LFDE-7
Price: 0.49 USD
Availability: InStock

REF: DMP3028LFDE-7 Diodes Incorporated

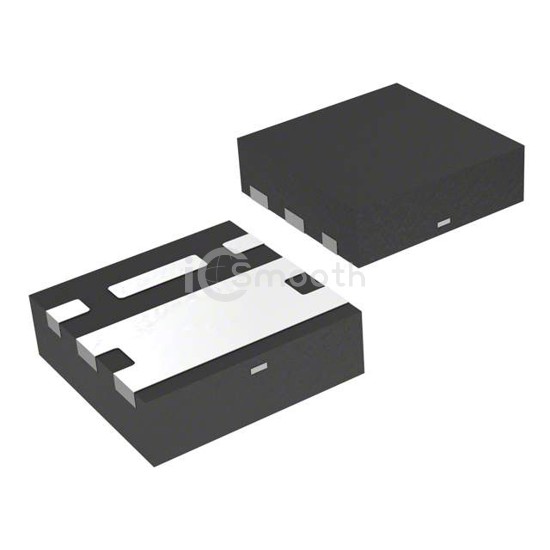

DMP3028LFDE-7

Diodes Incorporated

MOSFET P-CH 30V 6.8A 6UDFN

DMP3028LFDE-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 30V 6.8A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUDFN.

Datasheet Request a Quote

In Stock: 159,147

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	6.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	32mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1241 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	660mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type E)
Package / Case	6-PowerUDFN
