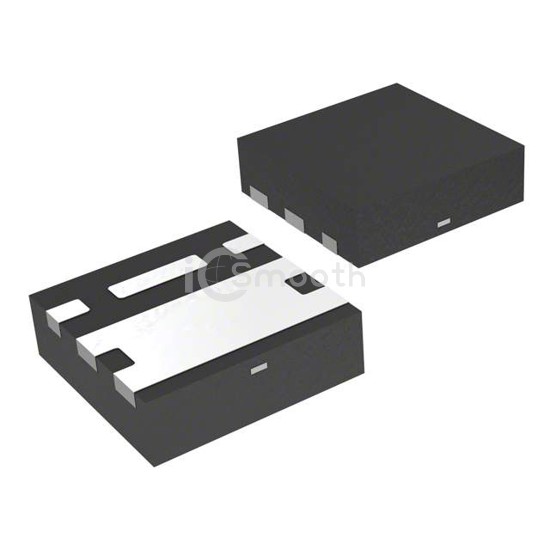

Name: DMP3026SFDE-7
Brand: Diodes Incorporated
SKU: DMP3026SFDE-7
Price: 0.52 USD
Availability: InStock

REF: DMP3026SFDE-7 Diodes Incorporated

DMP3026SFDE-7

Diodes Incorporated

MOSFET P-CH 30V 10.4A 6UDFN

DMP3026SFDE-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 30V 10.4A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUDFN.

Datasheet Request a Quote

In Stock: 3,013

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	10.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	19mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19.6 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1204 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type E)
Package / Case	6-PowerUDFN
