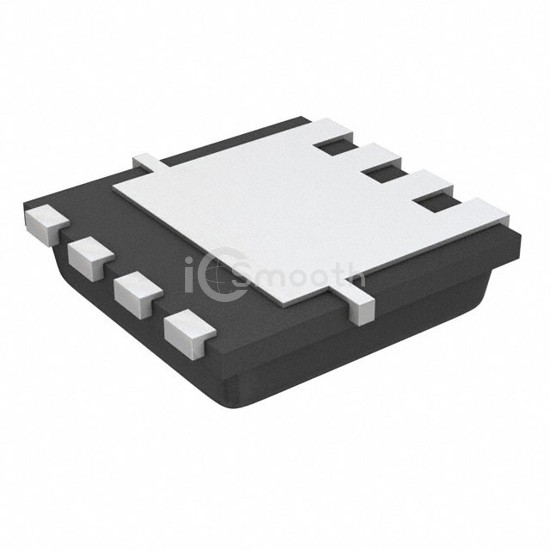

DMP3018SFV-13

In Stock: 2,610
DMP3018SFV-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMP3018SFV-13 Diodes Incorporated
DMP3018SFV-13

Diodes Incorporated

MOSFET P-CH 30V 11A PWRDI3333

DMP3018SFV-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 30V 11A PWRDI3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 2,610

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C11A (Ta), 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs12mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs51 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds2147 pF @ 15 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8 (Type UX)
Package / Case8-PowerVDFN
