Name: DMP25H18DLFDE-7
Brand: Diodes Incorporated
SKU: DMP25H18DLFDE-7
Price: 1.52 USD
Availability: InStock

REF: DMP25H18DLFDE-7 Diodes Incorporated

DMP25H18DLFDE-7

Diodes Incorporated

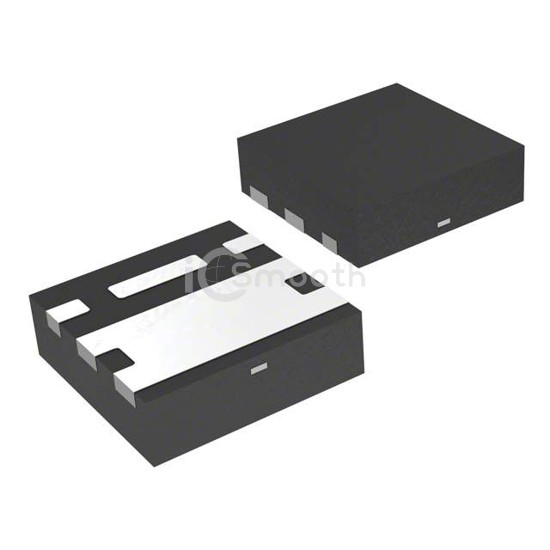

MOSFET P-CH 250V 260MA 6UDFN

DMP25H18DLFDE-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 250V 260MA 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUDFN.

Datasheet Request a Quote

In Stock: 5,452

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250 V
Current - Continuous Drain (Id) @ 25°C	260mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	3.5V, 10V
Rds On (Max) @ Id, Vgs	14Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	2.8 nC @ 10 V

Vgs (Max)	±40V
Input Capacitance (Ciss) (Max) @ Vds	81 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	600mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type E)
Package / Case	6-PowerUDFN
