Name: DMP2540UCB9-7
Brand: Diodes Incorporated
SKU: DMP2540UCB9-7
Price: 0.55 USD
Availability: InStock

REF: DMP2540UCB9-7 Diodes Incorporated

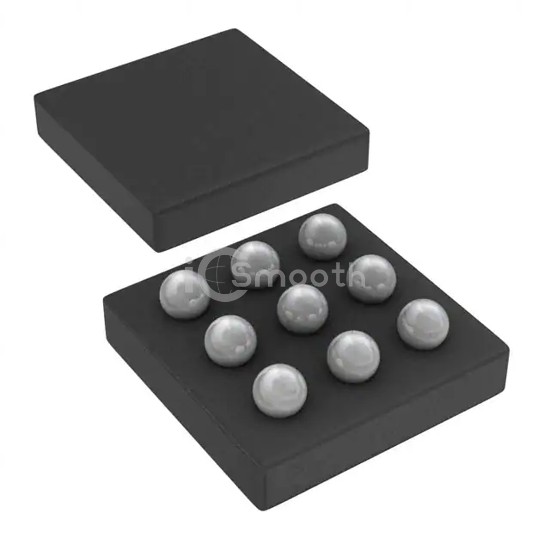

DMP2540UCB9-7

Diodes Incorporated

MOSFET P-CH 25V 4A U-WLB1515-9

DMP2540UCB9-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 25V 4A U-WLB1515-9. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 9-UFBGA, WLBGA.

Datasheet Request a Quote

In Stock: 134

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	40mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 4.5 V

Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	450 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-WLB1515-9
Package / Case	9-UFBGA, WLBGA
