DMP22D5UDJ

In Stock: 2,136

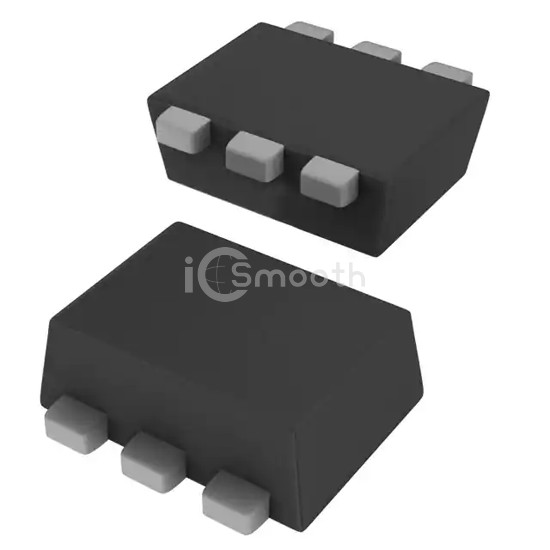

DMP22D5UDJ - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMP22D5UDJ Diodes Incorporated
DMP22D5UDJ

Diodes Incorporated

MOSFET 2P-CH 20V SOT963

DMP22D5UDJ is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2P-CH 20V SOT963. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-963, power - max 380mW.

Datasheet Request a Quote

In Stock: 2,136

Specifications

14 parameters
Product StatusActive
FET Type2 P-Channel (Dual)
FET Feature-
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C360mA (Ta)
Rds On (Max) @ Id, Vgs1.9Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds17pF @ 15V
Power - Max380mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-963
Supplier Device PackageSOT-963
