DMP21D6UFD-7

In Stock: 1,838

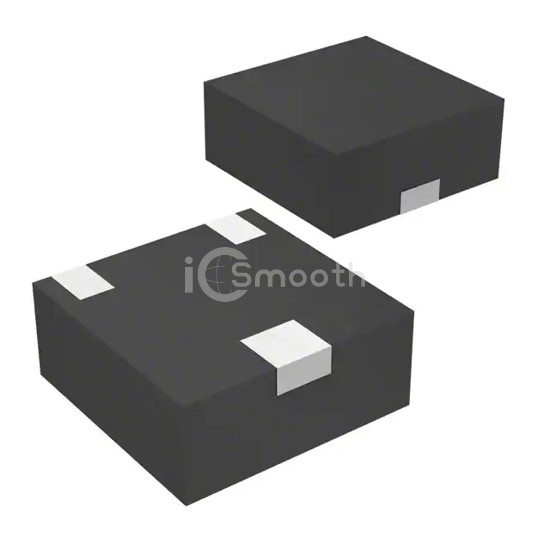

DMP21D6UFD-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMP21D6UFD-7 Diodes Incorporated
DMP21D6UFD-7

Diodes Incorporated

MOSFET P-CH 20V 600MA 3DFN

DMP21D6UFD-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 20V 600MA 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-UDFN.

Datasheet Request a Quote

In Stock: 1,838

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C600mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.2V, 4.5V
Rds On (Max) @ Id, Vgs1Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.8 nC @ 8 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds46.1 pF @ 10 V
FET Feature-
Power Dissipation (Max)400mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageX1-DFN1212-3
Package / Case3-UDFN
