Name: DMP213DUFA-7B
Brand: Diodes Incorporated
SKU: DMP213DUFA-7B
Price: 0.06 USD
Availability: InStock

REF: DMP213DUFA-7B Diodes Incorporated

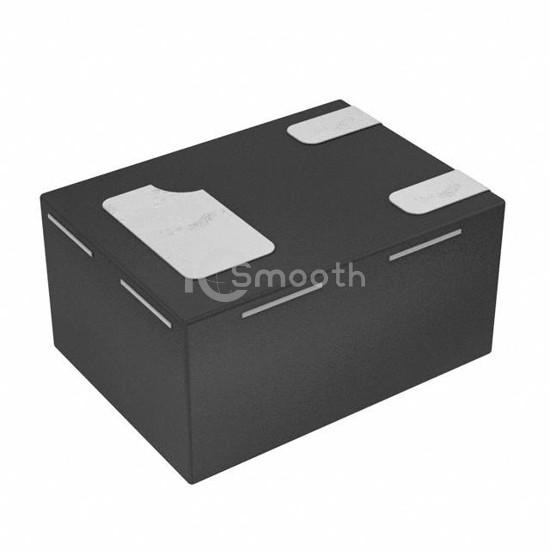

DMP213DUFA-7B

Diodes Incorporated

MOSFET P-CH 25V 145MA 3DFN

DMP213DUFA-7B is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 25V 145MA 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 9,210

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	145mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 4.5V
Rds On (Max) @ Id, Vgs	10Ohm @ 200mA, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.35 nC @ 4.5 V

Vgs (Max)	-8V
Input Capacitance (Ciss) (Max) @ Vds	27.2 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	360mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN0806-3
Package / Case	3-XFDFN
