Name: DMP210DUFB4-7B
Brand: Diodes Incorporated
SKU: DMP210DUFB4-7B
Availability: InStock

REF: DMP210DUFB4-7B Diodes Incorporated

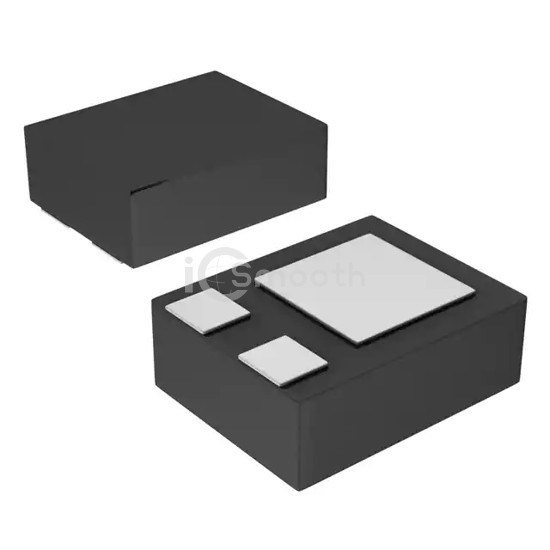

DMP210DUFB4-7B

MOSFET P-CH 20V 200MA 3DFN

DMP210DUFB4-7B is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 20V 200MA 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 8,885

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	175 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN1006-3
Package / Case	3-XFDFN
