DMP2100UCB9-7

In Stock: 3,151

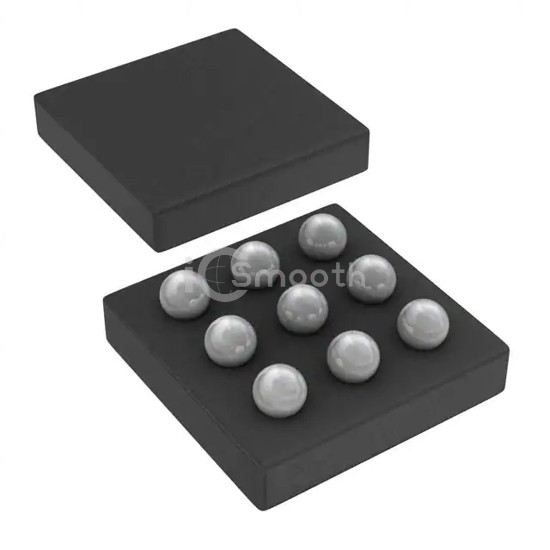

DMP2100UCB9-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMP2100UCB9-7 Diodes Incorporated
DMP2100UCB9-7

Diodes Incorporated

MOSFET 2P-CH 20V 3A 9UWLB

DMP2100UCB9-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2P-CH 20V 3A 9UWLB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 9-UFBGA, WLBGA, power - max 800mW.

Datasheet Request a Quote

In Stock: 3,151

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual) Common Source
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C3A
Rds On (Max) @ Id, Vgs100mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds310pF @ 10V
Power - Max800mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case9-UFBGA, WLBGA
Supplier Device PackageU-WLB1515-9
