DMP2040UND-7

In Stock: 5,914

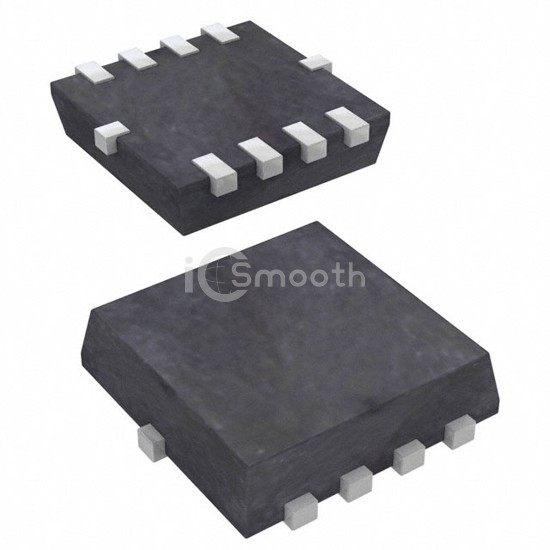

DMP2040UND-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMP2040UND-7 Diodes Incorporated
DMP2040UND-7

Diodes Incorporated

MOSFET BVDSS: 8V~24V POWERDI3333

DMP2040UND-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 8V~24V POWERDI3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 900mW (Ta).

Datasheet Request a Quote

In Stock: 5,914

Specifications

14 parameters
Product StatusActive
FET Type2 P-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C5.3A (Ta), 13.6A (Tc)
Rds On (Max) @ Id, Vgs36mOhm @ 8.9A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds834pF @ 10V
Power - Max900mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePowerDI3333-8 (Type UXB)
