DMP2039UFDE4-7

In Stock: 5,068

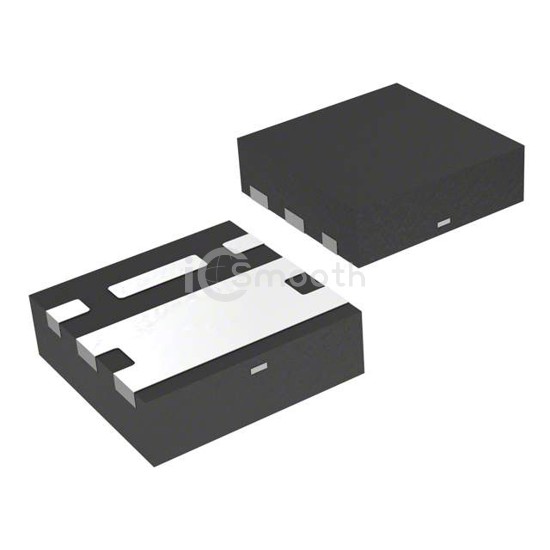

DMP2039UFDE4-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMP2039UFDE4-7 Diodes Incorporated
DMP2039UFDE4-7

Diodes Incorporated

MOSFET P-CH 25V 7.3A 6DFN

DMP2039UFDE4-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 25V 7.3A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerXDFN.

Datasheet Request a Quote

In Stock: 5,068

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C7.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs26mOhm @ 6.4A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs28.2 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2530 pF @ 15 V
FET Feature-
Power Dissipation (Max)690mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageX2-DFN2020-6
Package / Case6-PowerXDFN
