Name: DMP2035UFDF-13
Brand: Diodes Incorporated
SKU: DMP2035UFDF-13
Price: 0.14 USD
Availability: InStock

REF: DMP2035UFDF-13 Diodes Incorporated

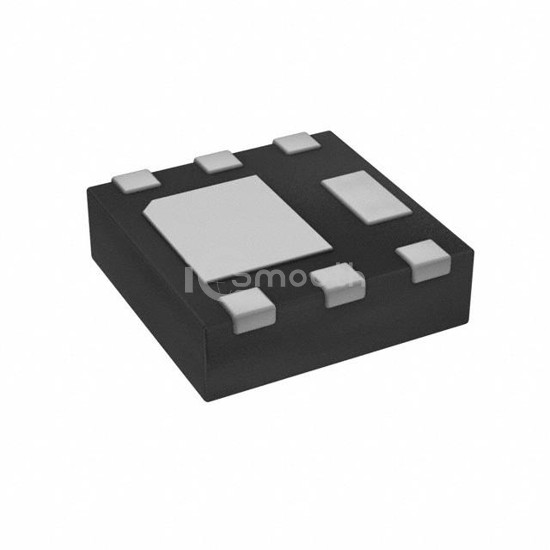

DMP2035UFDF-13

Diodes Incorporated

MOSFET P-CH 20V 8.1A 6UDFN

DMP2035UFDF-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 20V 8.1A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,388

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	8.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	29mOhm @ 6.4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20.5 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1808 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.03W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type F)
Package / Case	6-UDFN Exposed Pad
