DMP2035UFCL-7

In Stock: 14,901

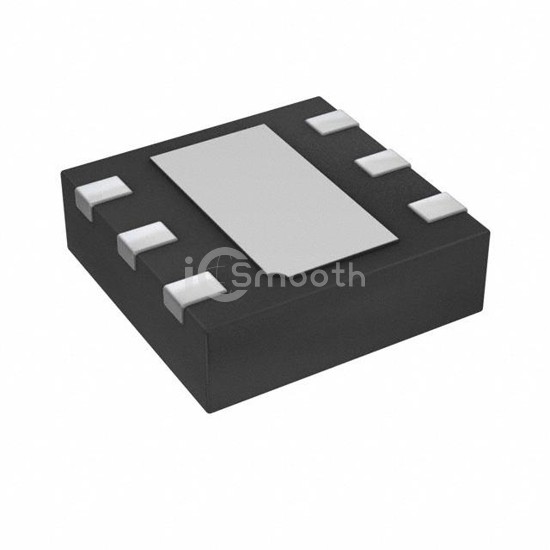

DMP2035UFCL-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMP2035UFCL-7 Diodes Incorporated
DMP2035UFCL-7

Diodes Incorporated

MOSFET P-CH 20V 6.6A 6UDFN

DMP2035UFCL-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 20V 6.6A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 14,901

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C6.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs24mOhm @ 8A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs44 nC @ 8 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2200 pF @ 10 V
FET Feature-
Power Dissipation (Max)740mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageU-DFN1616-6
Package / Case6-UFDFN Exposed Pad
