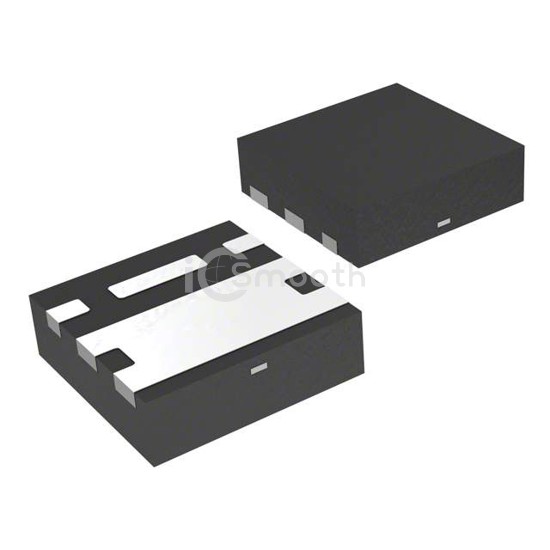

Name: DMP2021UFDE-7
Brand: Diodes Incorporated
SKU: DMP2021UFDE-7
Price: 0.60 USD
Availability: InStock

REF: DMP2021UFDE-7 Diodes Incorporated

DMP2021UFDE-7

Diodes Incorporated

MOSFET P-CH 20V 11.1A 6UDFN

DMP2021UFDE-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 20V 11.1A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUDFN.

Datasheet Request a Quote

In Stock: 4,244

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	11.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	16mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	59 nC @ 8 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	2760 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type E)
Package / Case	6-PowerUDFN
