DMP2018LFK-7

In Stock: 3,496

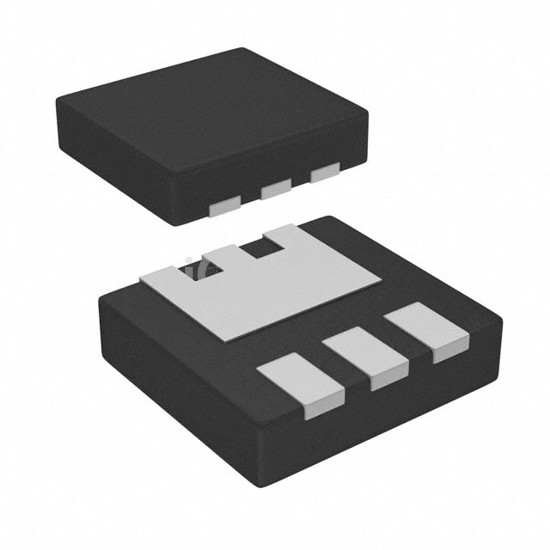

DMP2018LFK-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMP2018LFK-7 Diodes Incorporated
DMP2018LFK-7

Diodes Incorporated

MOSFET P-CH 20V 9.2A 6UDFN

DMP2018LFK-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 20V 9.2A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUDFN.

Datasheet Request a Quote

In Stock: 3,496

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C9.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs16mOhm @ 3.6A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 200µA
Gate Charge (Qg) (Max) @ Vgs113 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds4748 pF @ 10 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageU-DFN2523-6
Package / Case6-PowerUDFN
