DMP1245UFCL-7

In Stock: 13,960
DMP1245UFCL-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMP1245UFCL-7 Diodes Incorporated

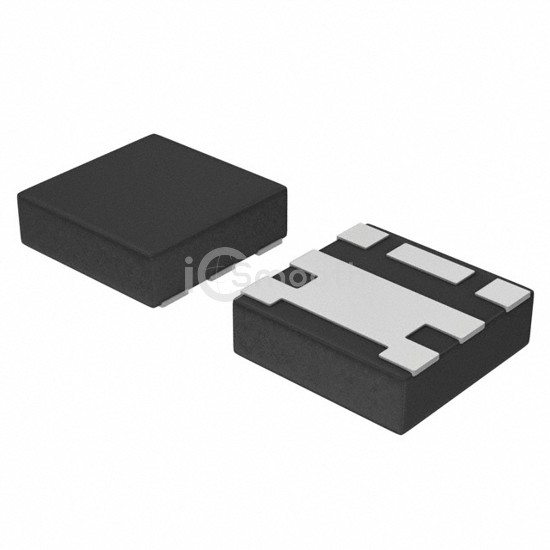

DMP1245UFCL-7

Diodes Incorporated

MOSFET P-CH 12V 6.6A X1-DFN1616

DMP1245UFCL-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 12V 6.6A X1-DFN1616. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 13,960

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C6.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs29mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs26.1 nC @ 8 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1357.4 pF @ 10 V
FET Feature-
Power Dissipation (Max)613mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageX1-DFN1616-6 (Type E)
Package / Case6-PowerUFDFN
