DMP10H088SPS-13

In Stock: 6,826

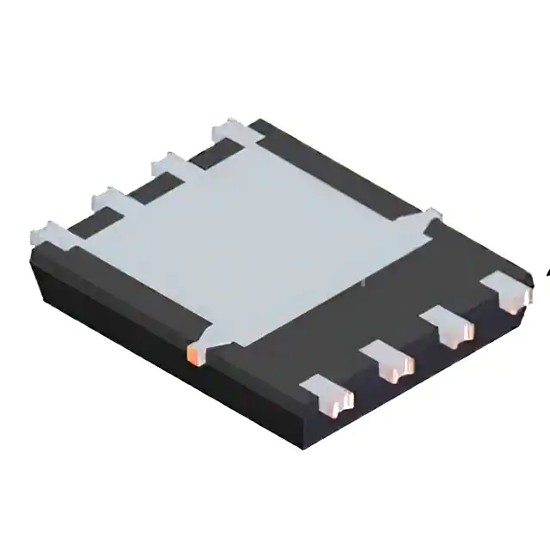

DMP10H088SPS-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMP10H088SPS-13 Diodes Incorporated
DMP10H088SPS-13

Diodes Incorporated

MOSFET BVDSS: 61V~100V POWERDI50

DMP10H088SPS-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET BVDSS: 61V~100V POWERDI50. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 6,826

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs83mOhm @ 4.4A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs27.7 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds1808 pF @ 50 V
FET Feature-
Power Dissipation (Max)2.2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Supplier Device PackagePowerDI5060-8 (Type UX)
Package / Case8-PowerTDFN
