Name: DMP1080UCB4-7
Brand: Diodes Incorporated
SKU: DMP1080UCB4-7
Availability: InStock

REF: DMP1080UCB4-7 Diodes Incorporated

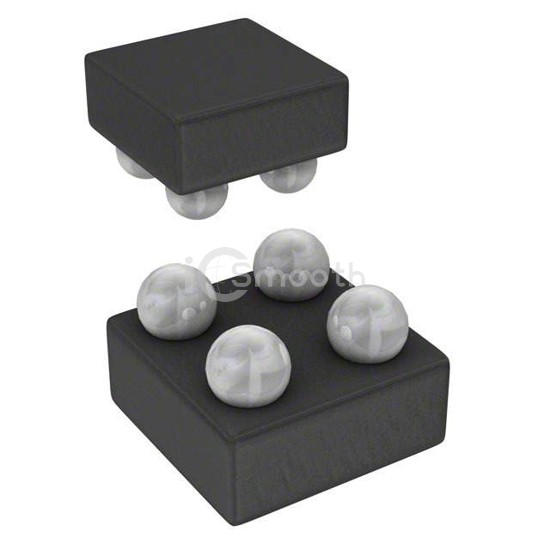

DMP1080UCB4-7

MOSFET P-CH 12V 3.3A U-WLB1010-4

DMP1080UCB4-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 12V 3.3A U-WLB1010-4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-UFBGA, WLBGA.

Datasheet Request a Quote

In Stock: 5,679

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	3.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	80mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5 nC @ 4.5 V

Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	350 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	820mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-WLB1010-4
Package / Case	4-UFBGA, WLBGA
