DMP1045UFY4-7

In Stock: 6,011

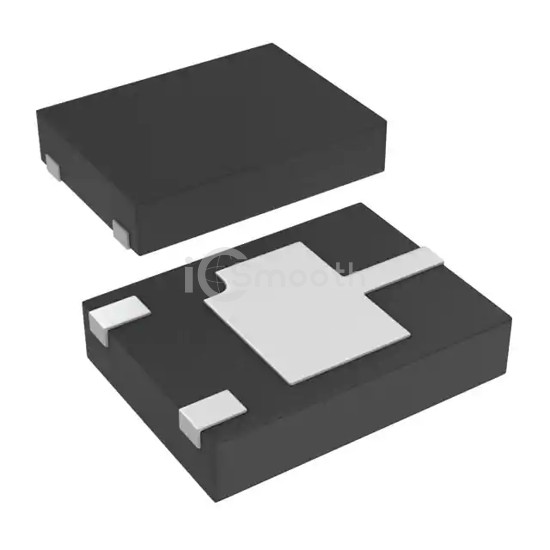

DMP1045UFY4-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMP1045UFY4-7 Diodes Incorporated
DMP1045UFY4-7

Diodes Incorporated

MOSFET P-CH 12V 5.5A DFN2015H4-3

DMP1045UFY4-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 12V 5.5A DFN2015H4-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 6,011

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs32mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs23.7 nC @ 8 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1291 pF @ 10 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN2015H4-3
Package / Case3-XFDFN
