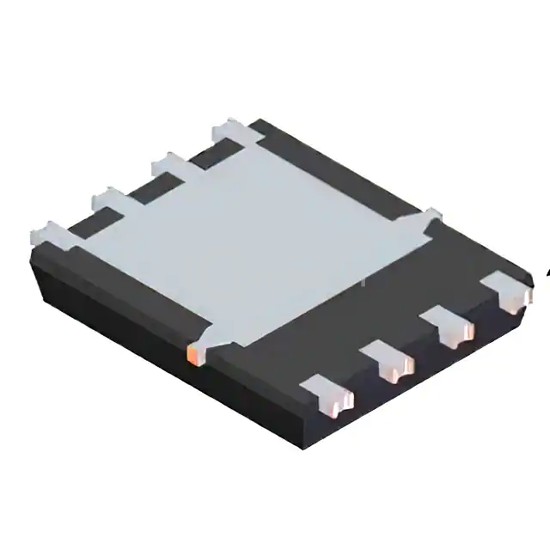

DMNH6021SPSWQ-13

In Stock: 9,764
DMNH6021SPSWQ-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMNH6021SPSWQ-13 Diodes Incorporated
DMNH6021SPSWQ-13

Diodes Incorporated

MOSFET BVDSS: 41V~60V POWERDI506

DMNH6021SPSWQ-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET BVDSS: 41V~60V POWERDI506. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 9,764

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C44A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs23mOhm @ 12A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20.1 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1132 pF @ 30 V
FET Feature-
Power Dissipation (Max)1.6W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Supplier Device PackagePowerDI5060-8 (Type UX)
Package / Case8-PowerTDFN
