DMN62D1LFD-13

In Stock: 1,644

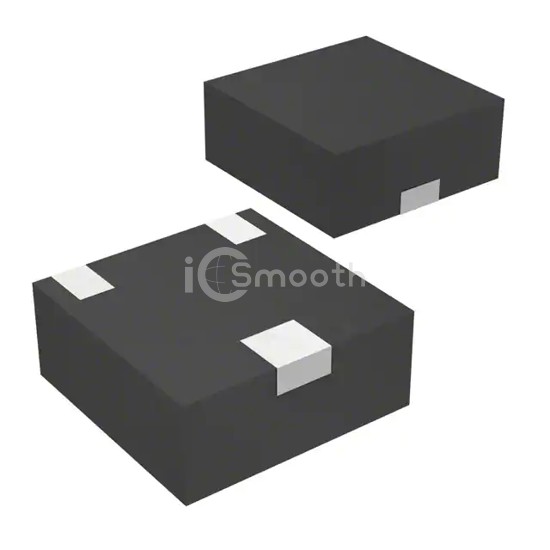

DMN62D1LFD-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMN62D1LFD-13 Diodes Incorporated
DMN62D1LFD-13

Diodes Incorporated

MOSFET N-CH 60V 400MA 3DFN

DMN62D1LFD-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 60V 400MA 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-UDFN.

Datasheet Request a Quote

In Stock: 1,644

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C400mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4V
Rds On (Max) @ Id, Vgs2Ohm @ 100mA, 4V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.55 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds36 pF @ 25 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageX1-DFN1212-3
Package / Case3-UDFN
