Name: DMN6040SFDEQ-7
Brand: Diodes Incorporated
SKU: DMN6040SFDEQ-7
Price: 0.22 USD
Availability: InStock

REF: DMN6040SFDEQ-7 Diodes Incorporated

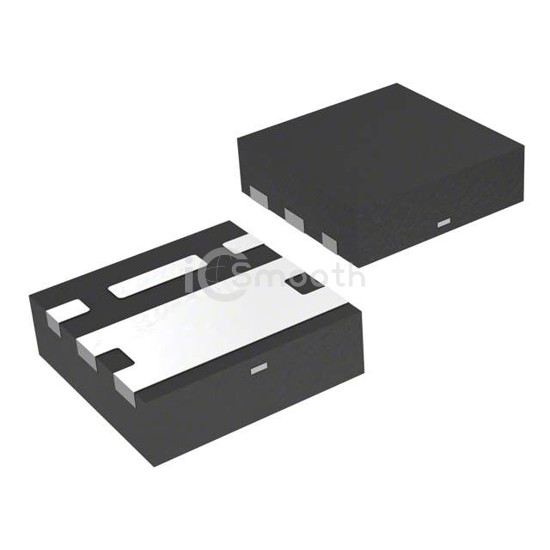

DMN6040SFDEQ-7

Diodes Incorporated

MOSFET N-CH 60V 5.3A 6UDFN

DMN6040SFDEQ-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 60V 5.3A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUDFN.

Datasheet Request a Quote

In Stock: 1,311

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	5.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	38mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22.4 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1287 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	660mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type E)
Package / Case	6-PowerUDFN
