DMN3730UFB4-7B

In Stock: 2,351

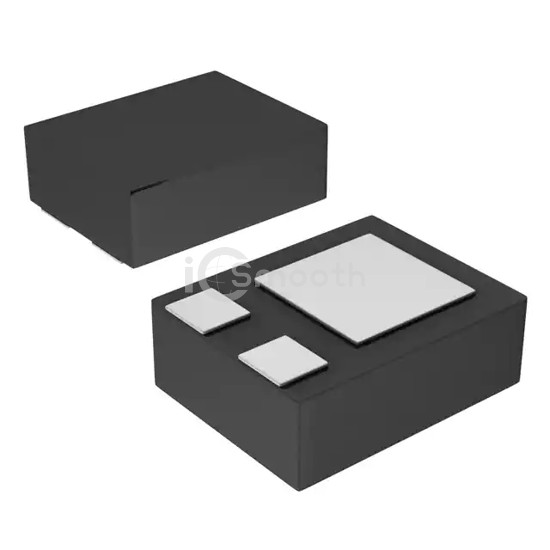

DMN3730UFB4-7B - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMN3730UFB4-7B Diodes Incorporated
DMN3730UFB4-7B

Diodes Incorporated

MOSFET N-CH 30V 750MA 3DFN

DMN3730UFB4-7B is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 30V 750MA 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Request a Quote

In Stock: 2,351

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C750mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs460mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.6 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds64.3 pF @ 25 V
FET Feature-
Power Dissipation (Max)470mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageX2-DFN1006-3
Package / Case3-XFDFN
