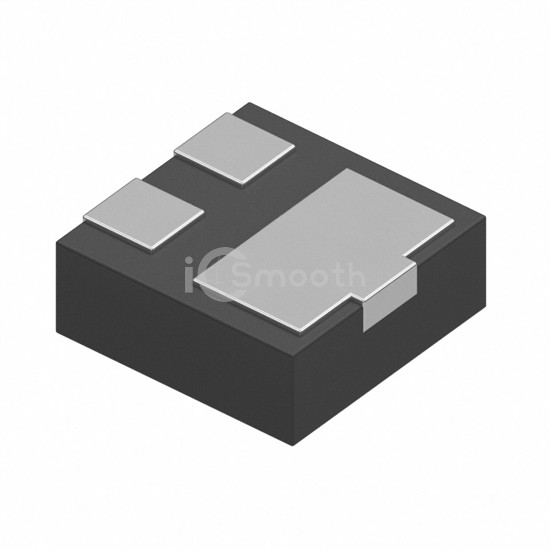

DMN3071LFR4-7R

In Stock: 2,395
DMN3071LFR4-7R - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMN3071LFR4-7R Diodes Incorporated
DMN3071LFR4-7R

Diodes Incorporated

MOSFET N-CH 30V 3.4A 3DFN

DMN3071LFR4-7R is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 30V 3.4A 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 2,395

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C3.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs65mOhm @ 3.2A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds190 pF @ 15 V
FET Feature-
Power Dissipation (Max)500mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageX2-DFN1010-3
Package / Case3-XFDFN
