Name: DMN3071LFR4-7
Brand: Diodes Incorporated
SKU: DMN3071LFR4-7
Price: 0.09 USD
Availability: InStock

REF: DMN3071LFR4-7 Diodes Incorporated

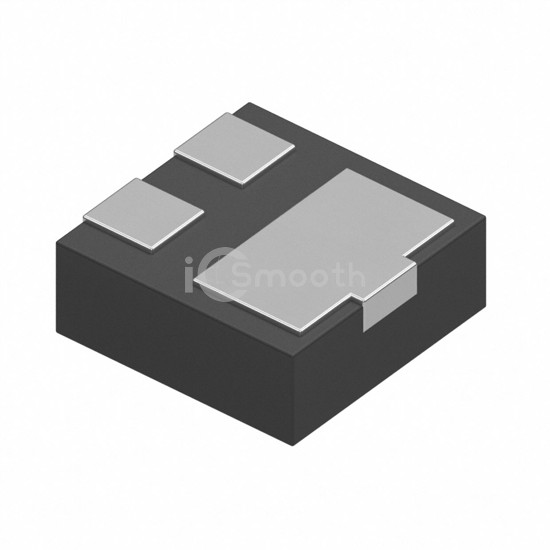

DMN3071LFR4-7

Diodes Incorporated

MOSFET N-CH 30V 3.4A 3DFN

DMN3071LFR4-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 30V 3.4A 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 5,256

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	3.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	65mOhm @ 3.2A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	190 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	500mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN1010-3
Package / Case	3-XFDFN
