Name: DMN3025LFV-7
Brand: Diodes Incorporated
SKU: DMN3025LFV-7
Price: 0.14 USD
Availability: InStock

REF: DMN3025LFV-7 Diodes Incorporated

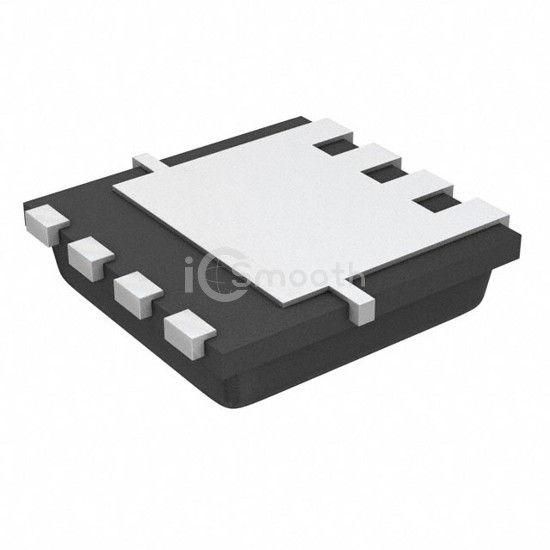

DMN3025LFV-7

Diodes Incorporated

MOSFET N-CH 30V 25A POWERDI3333

DMN3025LFV-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 30V 25A POWERDI3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,806

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	18mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.8 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	500 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	900mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerDI3333-8 (Type UX)
Package / Case	8-PowerVDFN
