DMN3016LDN-7

In Stock: 6,884

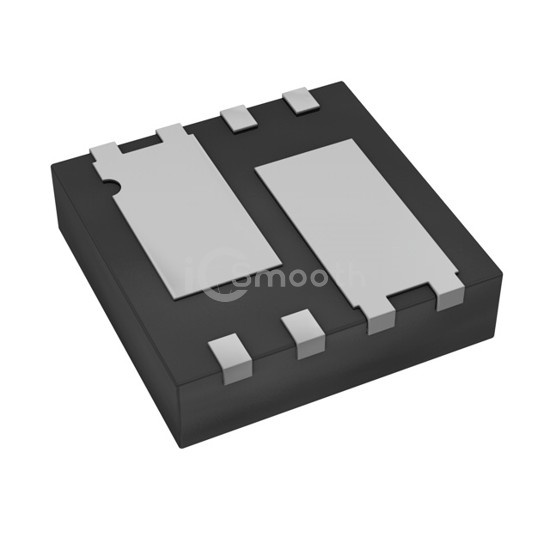

DMN3016LDN-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMN3016LDN-7 Diodes Incorporated
DMN3016LDN-7

Diodes Incorporated

MOSFET 2N-CH 30V 7.3A 8VDFN

DMN3016LDN-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2N-CH 30V 7.3A 8VDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 1.1W.

Datasheet Request a Quote

In Stock: 6,884

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C7.3A
Rds On (Max) @ Id, Vgs20mOhm @ 11A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1415pF @ 15V
Power - Max1.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device PackageV-DFN3030-8 (Type J)
