Name: DMN2300UFD-7
Brand: Diodes Incorporated
SKU: DMN2300UFD-7
Price: 0.12 USD
Availability: InStock

REF: DMN2300UFD-7 Diodes Incorporated

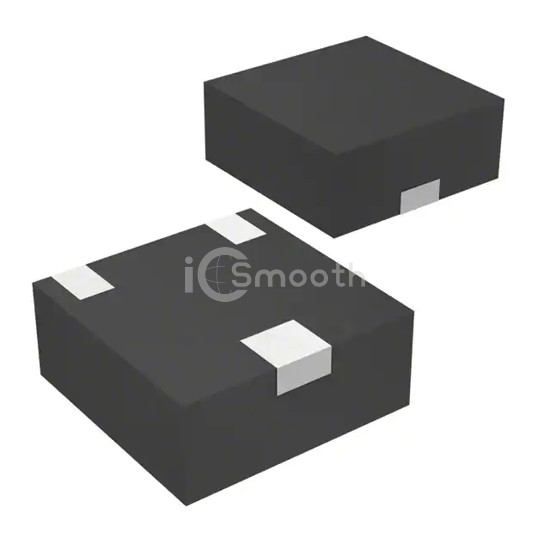

DMN2300UFD-7

Diodes Incorporated

MOSFET N-CH 20V 1.21A 3DFN

DMN2300UFD-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 20V 1.21A 3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-UDFN.

Datasheet Request a Quote

In Stock: 2,540

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	1.21A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	200mOhm @ 900mA, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	67.62 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	470mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X1-DFN1212-3
Package / Case	3-UDFN
