Name: DMN2080UCB4-7
Brand: Diodes Incorporated
SKU: DMN2080UCB4-7
Price: 0.14 USD
Availability: InStock

REF: DMN2080UCB4-7 Diodes Incorporated

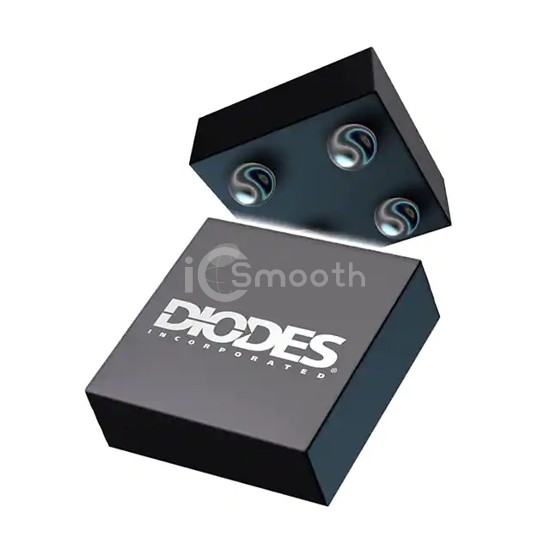

DMN2080UCB4-7

Diodes Incorporated

MOSFET N-CH 20V 3A X2-WLB0606-4

DMN2080UCB4-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 20V 3A X2-WLB0606-4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-XFBGA, WLBGA.

Datasheet Request a Quote

In Stock: 2,562

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	56mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.4 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	540 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	710mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-WLB0606-4
Package / Case	4-XFBGA, WLBGA
