DMN2053UW-7

In Stock: 86,739

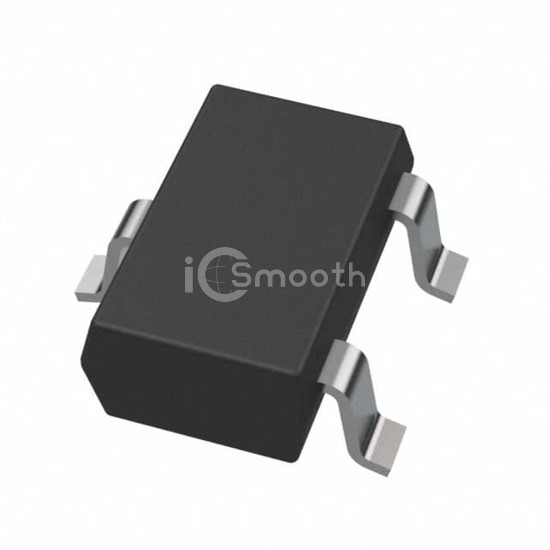

DMN2053UW-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMN2053UW-7 Diodes Incorporated
DMN2053UW-7

Diodes Incorporated

MOSFET N-CH 20V 2.9A SOT323

DMN2053UW-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 20V 2.9A SOT323. Key specifications: operating temperature -55°C ~ 150°C (TJ).

Request a Quote

In Stock: 86,739

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs56mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.6 nC @ 4.25 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds369 pF @ 10 V
FET Feature-
Power Dissipation (Max)470mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting Type-
Supplier Device Package-
Package / Case-
