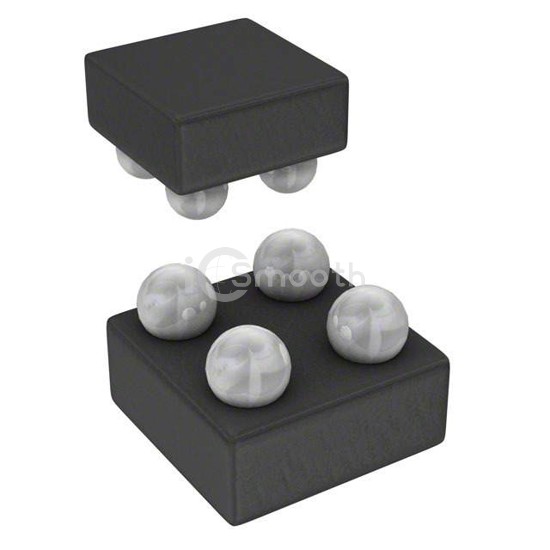

Name: DMN2044UCB4-7
Brand: Diodes Incorporated
SKU: DMN2044UCB4-7
Price: 0.64 USD
Availability: InStock

REF: DMN2044UCB4-7 Diodes Incorporated

DMN2044UCB4-7

Diodes Incorporated

MOSFET N-CH 20V 3.3A U-WLB1010-4

DMN2044UCB4-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 20V 3.3A U-WLB1010-4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-UFBGA, WLBGA.

Datasheet Request a Quote

In Stock: 3,409

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	40mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	47 nC @ 8 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1400 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	720mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-WLB1010-4
Package / Case	4-UFBGA, WLBGA
