DMN2036UCB4-7

In Stock: 3,155

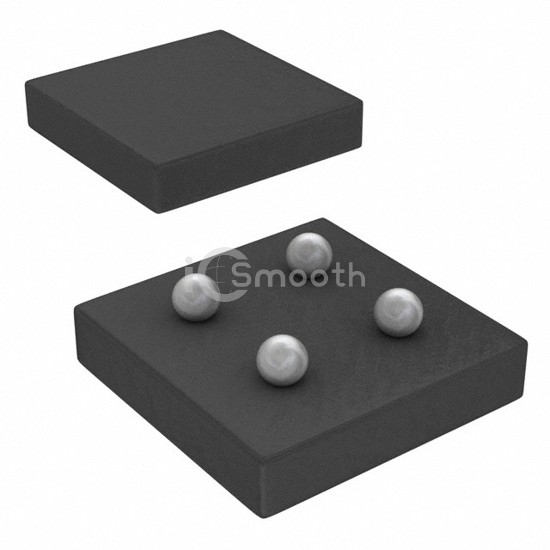

DMN2036UCB4-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMN2036UCB4-7 Diodes Incorporated
DMN2036UCB4-7

Diodes Incorporated

MOSFETN-CHAN 24V X2-WLB1616-4

DMN2036UCB4-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFETN-CHAN 24V X2-WLB1616-4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-XFBGA, WLBGA, power - max 1.45W.

Datasheet Request a Quote

In Stock: 3,155

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureStandard
Drain to Source Voltage (Vdss)-
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs12.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds-
Power - Max1.45W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-XFBGA, WLBGA
Supplier Device PackageX2-WLB1616-4
