DMN2024UDH-7

In Stock: 4,393

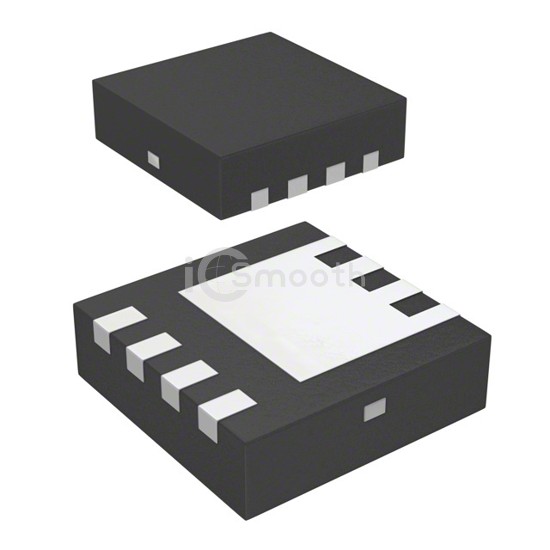

DMN2024UDH-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMN2024UDH-7 Diodes Incorporated
DMN2024UDH-7

Diodes Incorporated

MOSFET BVDSS: 8V-24V U-DFN3030-8

DMN2024UDH-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 8V-24V U-DFN3030-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerUDFN, power - max 950mW (Ta).

Request a Quote

In Stock: 4,393

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C5.2A (Ta)
Rds On (Max) @ Id, Vgs23mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds647pF @ 10V
Power - Max950mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerUDFN
Supplier Device PackageU-DFN3030-8
