Name: DMN2020UFCL-7
Brand: Diodes Incorporated
SKU: DMN2020UFCL-7
Price: 0.44 USD
Availability: InStock

REF: DMN2020UFCL-7 Diodes Incorporated

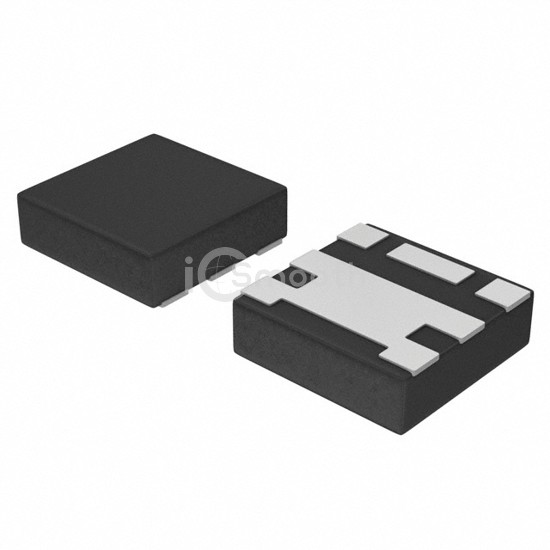

DMN2020UFCL-7

Diodes Incorporated

MOSFET N-CH 20V 9A X1-DFN1616-6

DMN2020UFCL-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 20V 9A X1-DFN1616-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 8,737

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	14mOhm @ 9A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21.5 nC @ 4.5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	1788 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	610mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X1-DFN1616-6 (Type E)
Package / Case	6-PowerUFDFN
