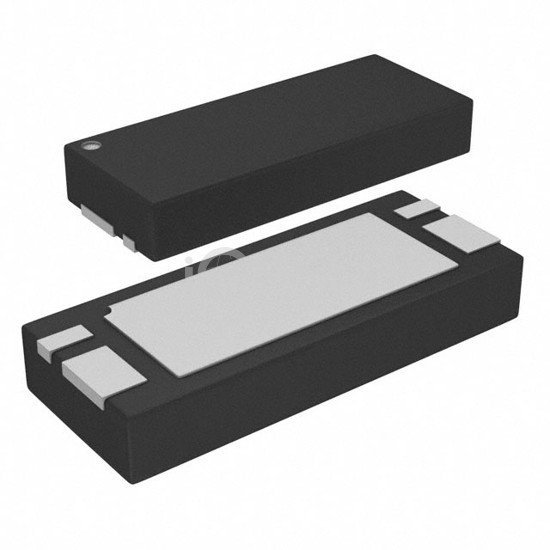

Name: DMN2016UFX-7
Brand: Diodes Incorporated
SKU: DMN2016UFX-7
Price: 0.28 USD
Availability: InStock

REF: DMN2016UFX-7 Diodes Incorporated

DMN2016UFX-7

Diodes Incorporated

MOSFET BVDSS: 8V-24V V-DFN2050-4

DMN2016UFX-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 8V-24V V-DFN2050-4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-VFDFN Exposed Pad, power - max 1.07W (Ta).

Request a Quote

In Stock: 8,516

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	24V
Current - Continuous Drain (Id) @ 25°C	9.9A (Ta)
Rds On (Max) @ Id, Vgs	15mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	14nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	950pF @ 10V
Power - Max	1.07W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-VFDFN Exposed Pad
Supplier Device Package	V-DFN2050-4
