DMN2010UDZ-7

In Stock: 1,621

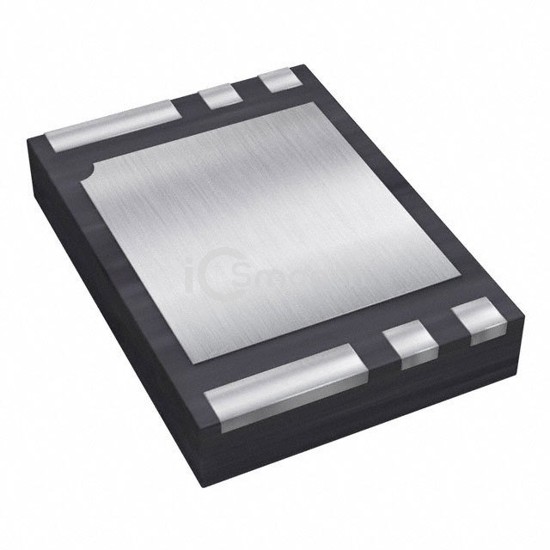

DMN2010UDZ-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMN2010UDZ-7 Diodes Incorporated
DMN2010UDZ-7

Diodes Incorporated

MOSFET 2N-CH 20V 11A U-DFN2535-6

DMN2010UDZ-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2N-CH 20V 11A U-DFN2535-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad, power - max 700mW.

Datasheet Request a Quote

In Stock: 1,621

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual) Common Drain
FET FeatureStandard
Drain to Source Voltage (Vdss)24V
Current - Continuous Drain (Id) @ 25°C11A
Rds On (Max) @ Id, Vgs7mOhm @ 5.5A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs33.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds2665pF @ 10V
Power - Max700mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-UDFN Exposed Pad
Supplier Device PackageU-DFN2535-6
