DMN2008LFU-7

In Stock: 1,944

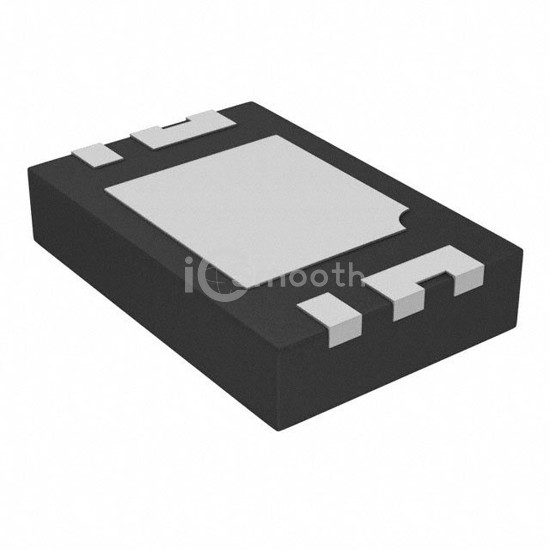

DMN2008LFU-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMN2008LFU-7 Diodes Incorporated
DMN2008LFU-7

Diodes Incorporated

MOSFET 2N-CHA 20V 14.5A DFN2030

DMN2008LFU-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2N-CHA 20V 14.5A DFN2030. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFDFN Exposed Pad, power - max 1W.

Datasheet Request a Quote

In Stock: 1,944

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C14.5A
Rds On (Max) @ Id, Vgs5.4mOhm @ 5.5A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250A
Gate Charge (Qg) (Max) @ Vgs42.3nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1418pF @ 10V
Power - Max1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-UFDFN Exposed Pad
Supplier Device PackageU-DFN2030-6 (Type B)
