Name: DMN2005LP4K-7
Brand: Diodes Incorporated
SKU: DMN2005LP4K-7
Price: 0.51 USD
Availability: InStock

REF: DMN2005LP4K-7 Diodes Incorporated

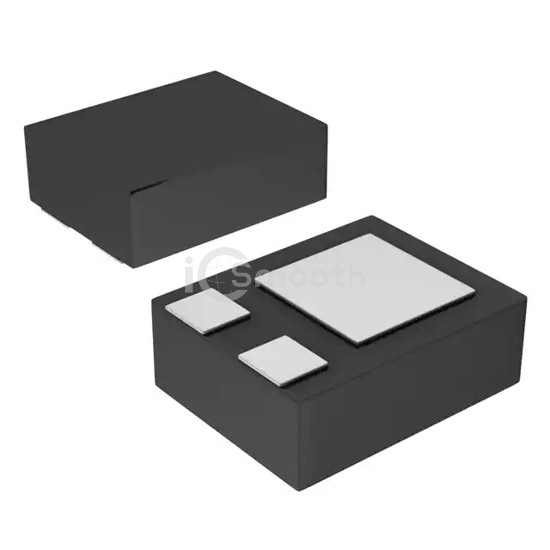

DMN2005LP4K-7

Diodes Incorporated

MOSFET N-CH 20V 200MA 3DFN

DMN2005LP4K-7 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 20V 200MA 3DFN. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 7,398

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4V
Rds On (Max) @ Id, Vgs	1.5Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id	900mV @ 100µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	41 pF @ 3 V
FET Feature	-
Power Dissipation (Max)	400mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN1006-3
Package / Case	3-XFDFN
