DMN1250UFEL-7

In Stock: 2,533

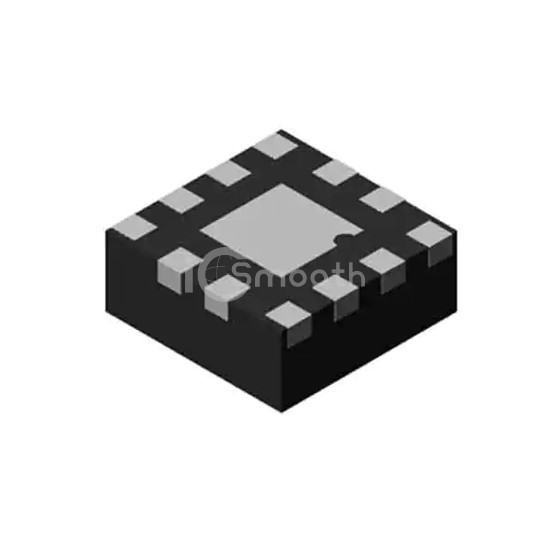

DMN1250UFEL-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMN1250UFEL-7 Diodes Incorporated
DMN1250UFEL-7

Diodes Incorporated

MOSFET BVDSS: 8V 24V U-QFN1515-1

DMN1250UFEL-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 8V 24V U-QFN1515-1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-UFQFN Exposed Pad, power - max 660mW.

Datasheet Request a Quote

In Stock: 2,533

Specifications

14 parameters
Product StatusActive
FET Type8 N-Channel, Common Gate, Common Source
FET FeatureStandard
Drain to Source Voltage (Vdss)12V
Current - Continuous Drain (Id) @ 25°C2A
Rds On (Max) @ Id, Vgs450mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds190pF @ 6V
Power - Max660mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case12-UFQFN Exposed Pad
Supplier Device PackageU-QFN1515-12
