DMN1150UFL3-7

In Stock: 9,538

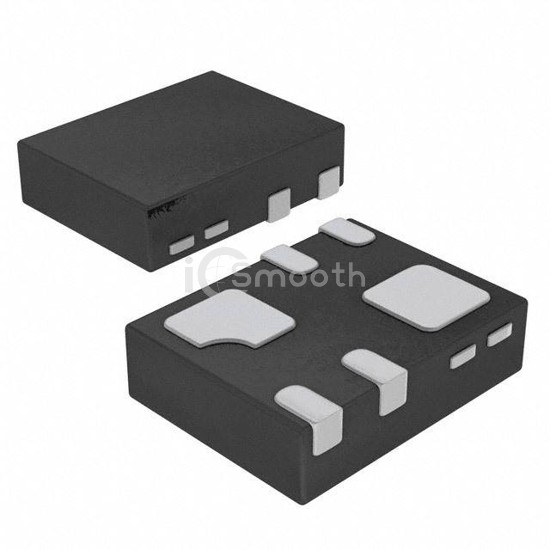

DMN1150UFL3-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMN1150UFL3-7 Diodes Incorporated
DMN1150UFL3-7

Diodes Incorporated

MOSFET 2N-CHA 12V 2A DFN1310

DMN1150UFL3-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET 2N-CHA 12V 2A DFN1310. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-XFDFN Exposed Pad, power - max 390mW.

Datasheet Request a Quote

In Stock: 9,538

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)12V
Current - Continuous Drain (Id) @ 25°C2A
Rds On (Max) @ Id, Vgs150mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds115pF @ 6V
Power - Max390mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-XFDFN Exposed Pad
Supplier Device PackageX2-DFN1310-6 (Type B)
