DMN1004UFV-13

In Stock: 7,276

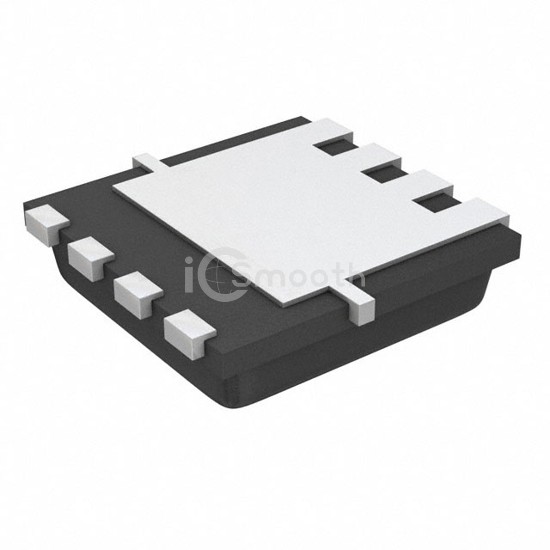

DMN1004UFV-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMN1004UFV-13 Diodes Incorporated
DMN1004UFV-13

Diodes Incorporated

MOSFET N-CH 12V 70A POWERDI3333

DMN1004UFV-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 12V 70A POWERDI3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 7,276

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs3.8mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs47 nC @ 8 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2385 pF @ 6 V
FET Feature-
Power Dissipation (Max)1.9W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8 (Type UX)
Package / Case8-PowerVDFN
