Name: DMJ70H1D3SH3
Brand: Diodes Incorporated
SKU: DMJ70H1D3SH3
Availability: InStock

REF: DMJ70H1D3SH3 Diodes Incorporated

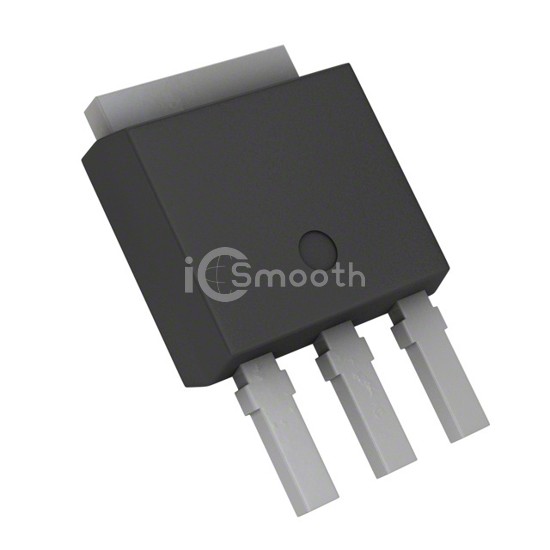

DMJ70H1D3SH3

MOSFET N-CH 700V 4.6A TO251

DMJ70H1D3SH3 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 700V 4.6A TO251. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 8,461

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	4.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.3Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13.9 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	351 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	41W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251
Package / Case	TO-251-3 Stub Leads, IPak
