DMG3401LSNQ-13

In Stock: 9,261

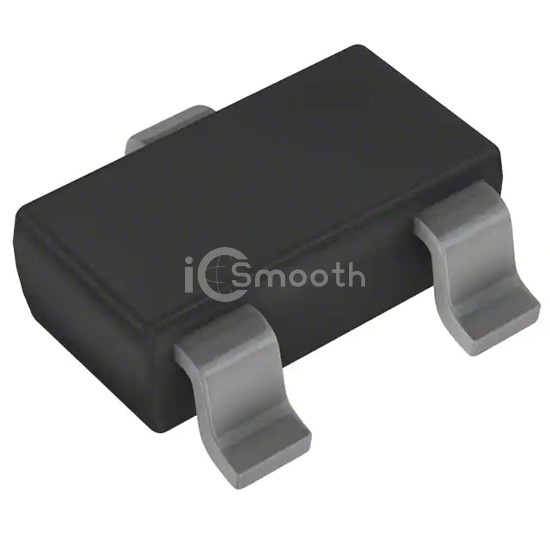

DMG3401LSNQ-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Single
REF: DMG3401LSNQ-13 Diodes Incorporated
DMG3401LSNQ-13

Diodes Incorporated

MOSFET P-CH 30V 3A SC59-3

DMG3401LSNQ-13 is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET P-CH 30V 3A SC59-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 9,261

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs50mOhm @ 4A, 10V
Vgs(th) (Max) @ Id1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25.1 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1326 pF @ 15 V
FET Feature-
Power Dissipation (Max)800mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-59-3
Package / CaseTO-236-3, SC-59, SOT-23-3
