DMC2991UDJ-7

In Stock: 1,100

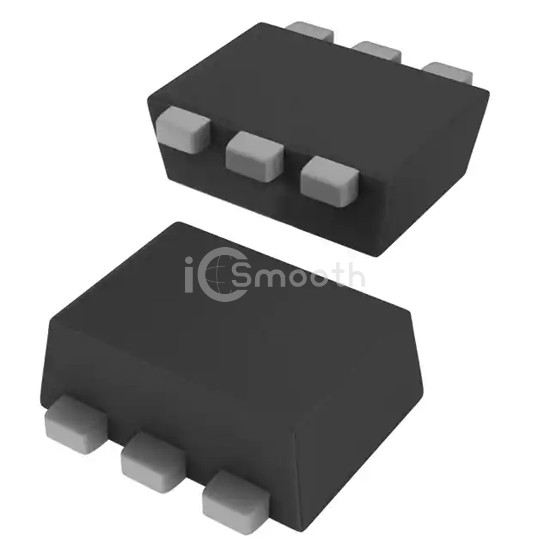

DMC2991UDJ-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMC2991UDJ-7 Diodes Incorporated
DMC2991UDJ-7

Diodes Incorporated

MOSFET BVDSS: 8V~24V SOT963 T&R

DMC2991UDJ-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET BVDSS: 8V~24V SOT963 T&R. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-963, power - max 380mW (Ta).

Datasheet Request a Quote

In Stock: 1,100

Specifications

14 parameters
Product StatusActive
FET TypeN and P-Channel Complementary
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C500mA (Ta), 360mA (Ta)
Rds On (Max) @ Id, Vgs990mOhm @ 100mA, 4.5V, 1.9Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.35nC @ 4.5V, 0.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds21.5pF @ 15V, 17pF @ 16V
Power - Max380mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-963
Supplier Device PackageSOT-963
